The door was installed on the
and wires running down the
starboard side.
and wires running down the
starboard side.
| How do I install a transom door? How do I install a scuba door? How do I install a fishing door? How do I install a handicap access door? I cut a 42" door in the port side of a boat. |

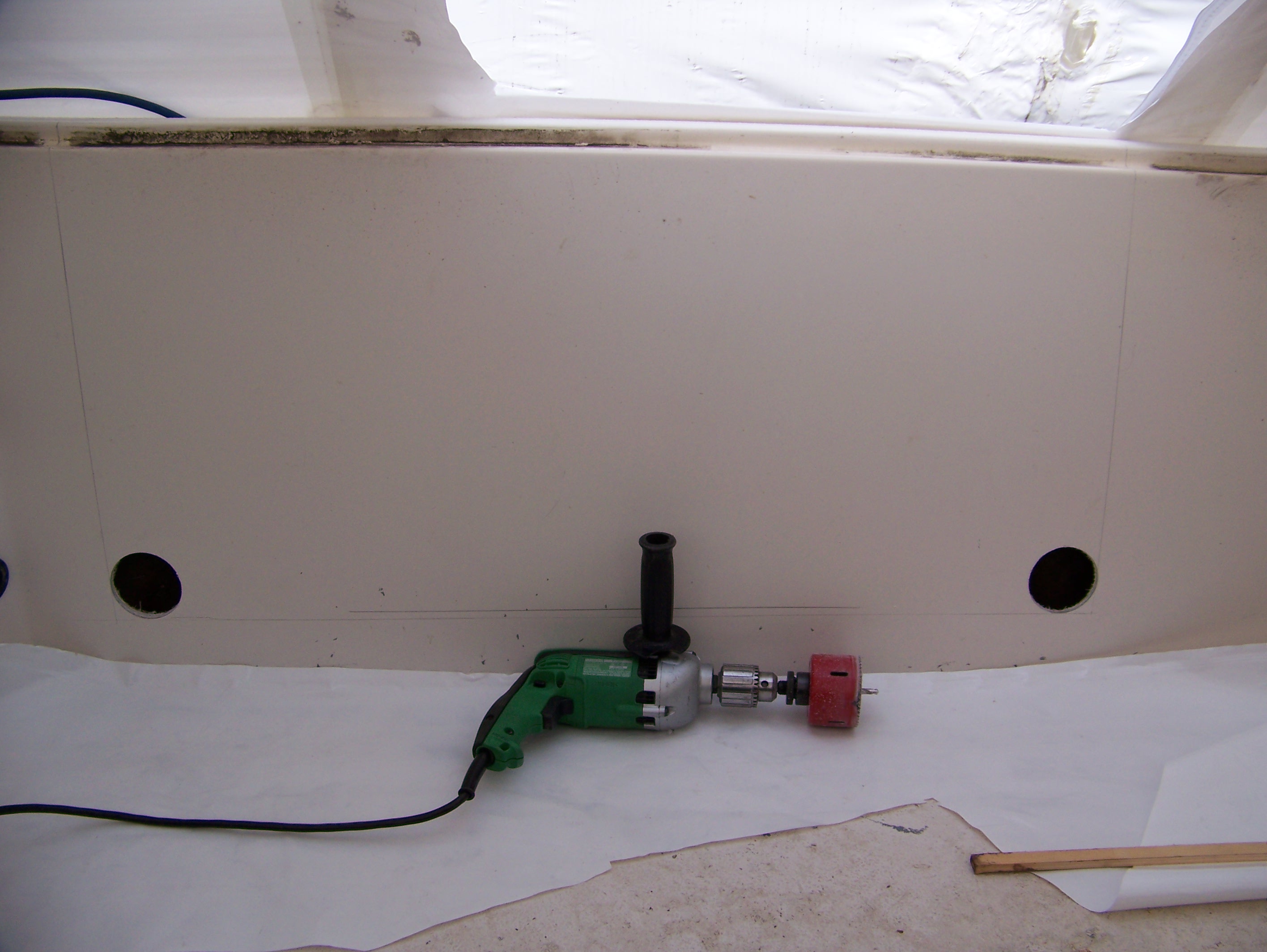

The corners of the door were
cut with a hole saw to eliminate
90 deg. corners. This reduces
stress.
cut with a hole saw to eliminate
90 deg. corners. This reduces
stress.

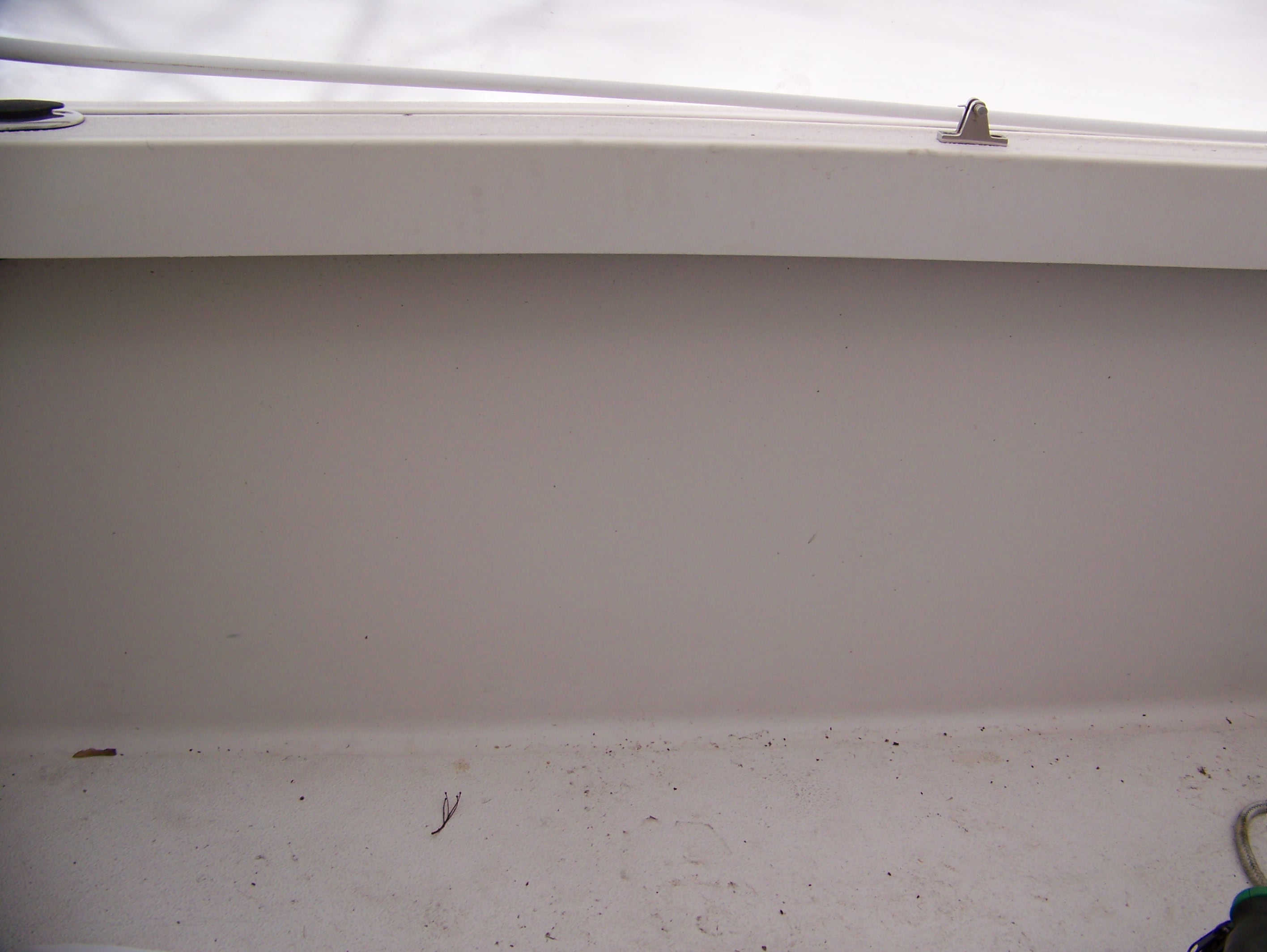

| The inside view of the boat. |

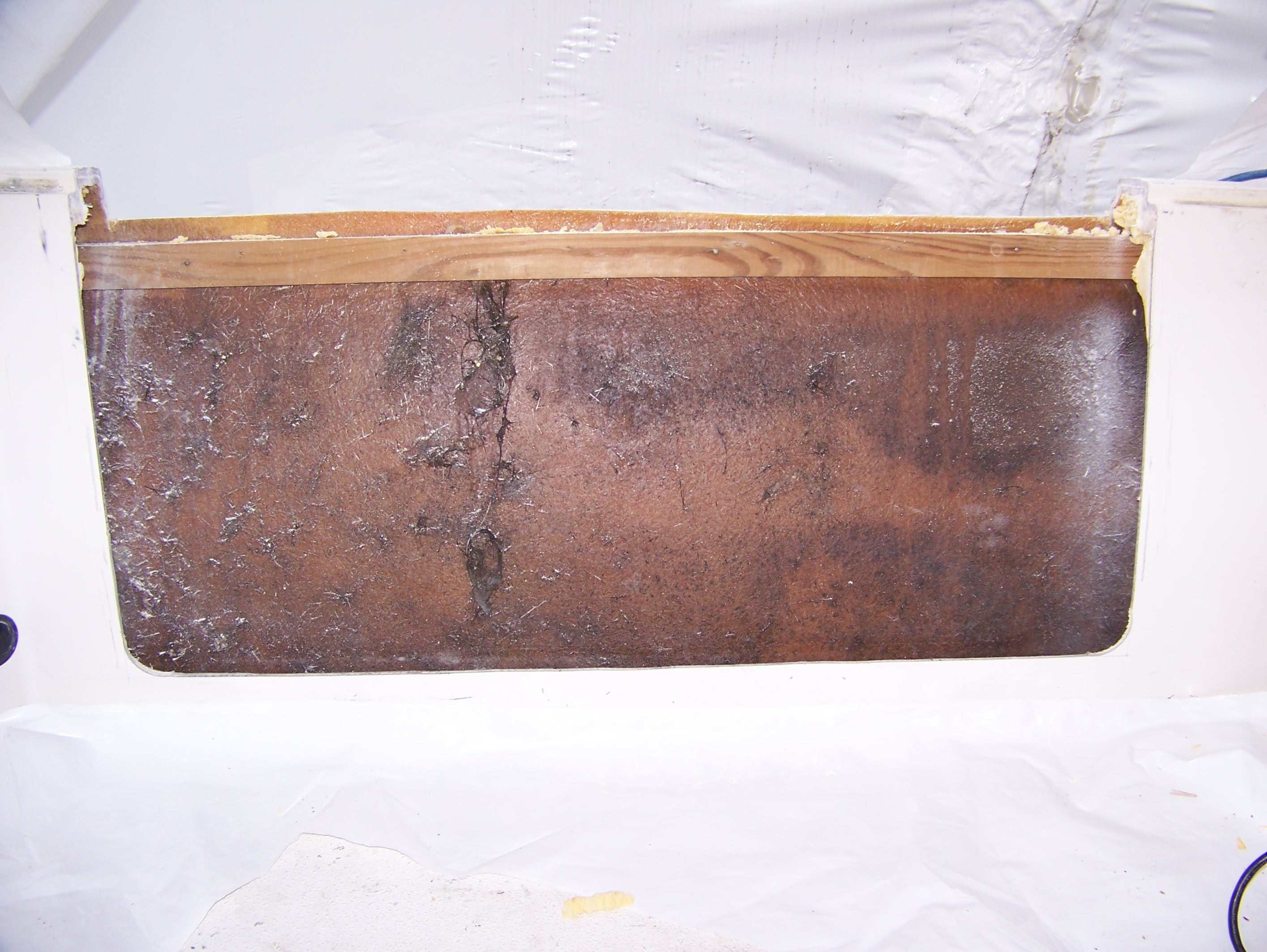

| Cutting inside liner |
The liner was cut using a
straight edge and a jig saw.
(Save all fiberglass, it could
come in handy later. )
straight edge and a jig saw.
(Save all fiberglass, it could
come in handy later. )

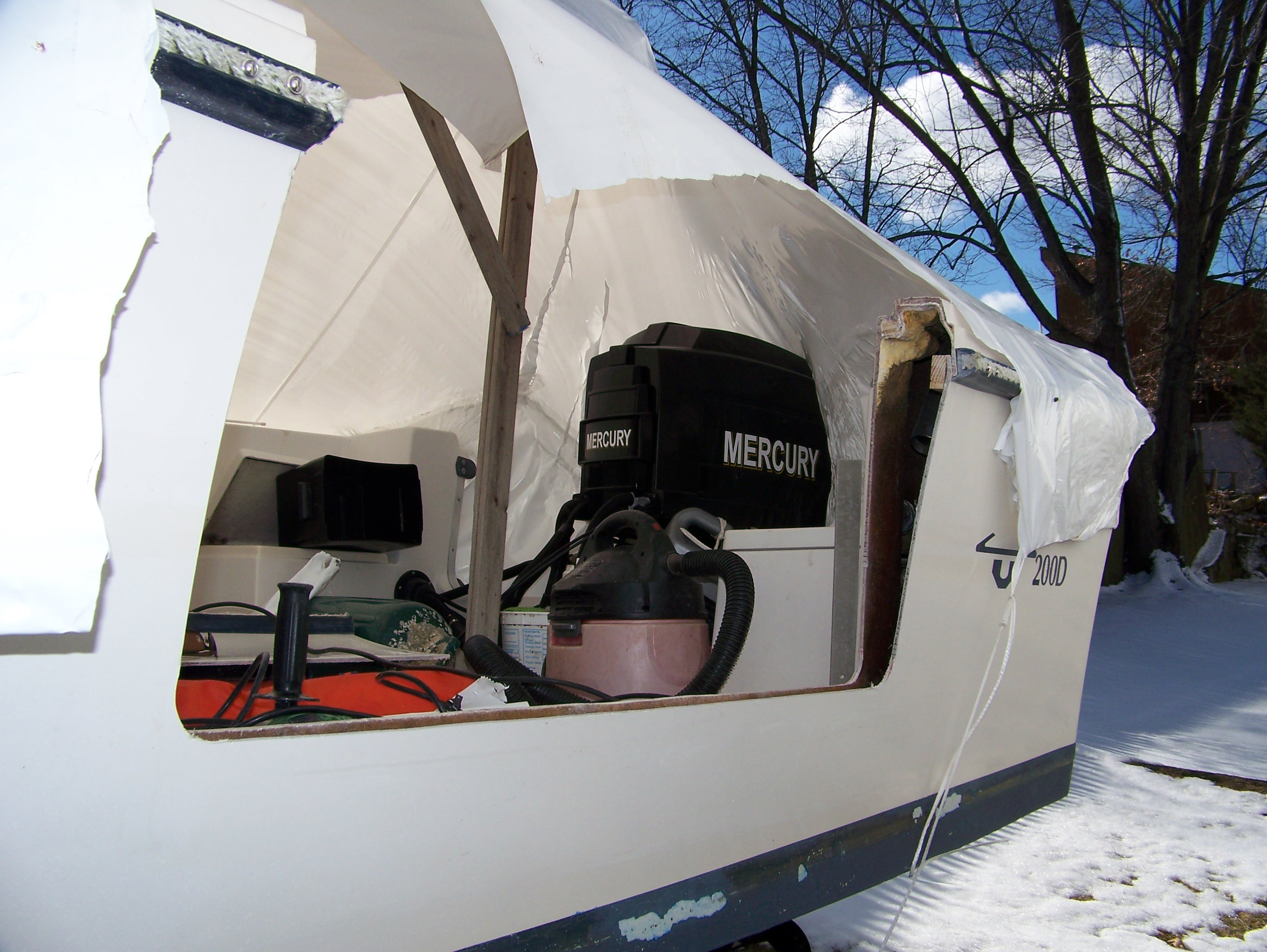

| Scuba / work door taking shape |
The hull was cut using the same
method as the liner.
method as the liner.
The cuts were pretty straight
and the liner was even with the
hull. The rub rail was a pain
though!!
and the liner was even with the
hull. The rub rail was a pain
though!!

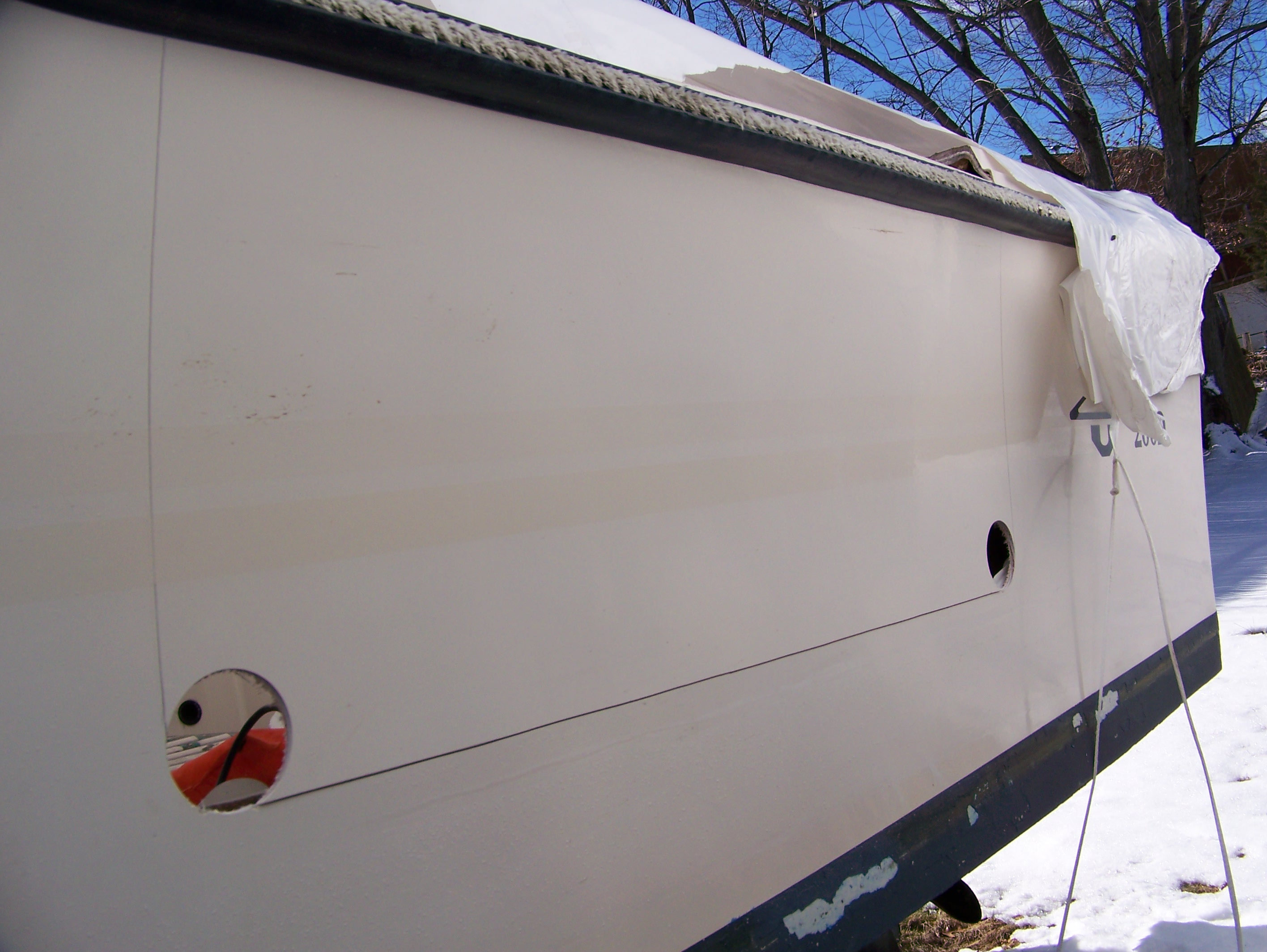

| Cutting hull |

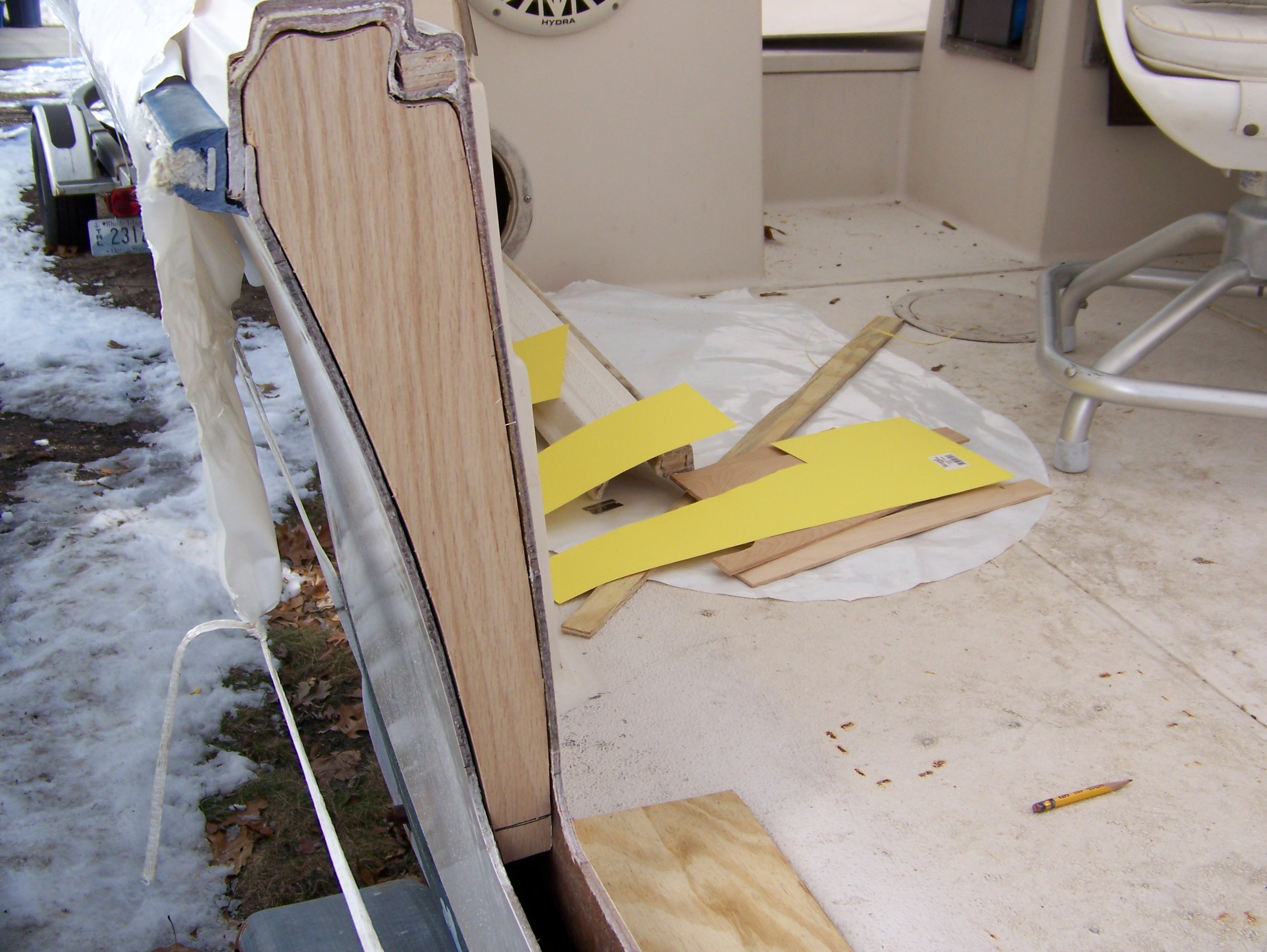

| Framing the rough cut |
knife produced my paterns.
Wood was cut and fit in place.
Wood was cut and fit in place.
